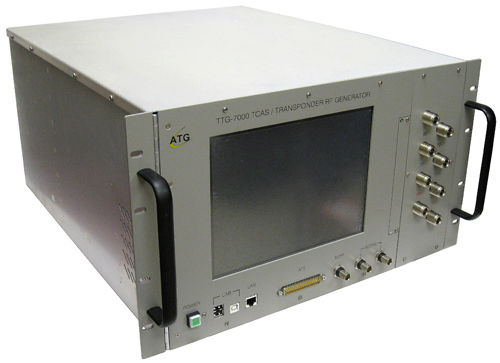

TTG-7000 TCAS\Transponder RF Generator

ATG and Viavi Solutions (Aeroflex) Announce Strategic Alliance to Provide NextGen Transponder and TCAS Avionics Test Equipment.

Press Release

VIAVI Solutions RGS-2000NG

Mobirise
  • TX/RX Downlink Formats Mode S and Mode A/C
  • TX/RX Uplink Formats Mode S and Mode A/C Interrogation Six Transmitters
  • Four Port Antenna Simulator
  • RF Output Phase: 0 to 359 Degrees (4 Port)
  • RF Output Power: 1 to -90 dBm
  • Simulates Dynamic (32) and Static (568) Aircraft
  • ADS-B Squitter (DO-260 Version -, A, and B)
  • Top and Bottom Receiver
  • Receiver Detects External RF and Internal Tx
  • Receiver Datalogging and Timestamp
  • User Defined Downlink/Uplink Formats
  • 10.4 Inch Front Panel Touchscreen Display
  • USB Type A Connectors (2) for External Flash Drives or HID
  • USB 2.0/GPIB/LAN Interface to PC
  • 115/230 VAC, 50/60 Hz
  • 19 Inch Rack Mountable Panel
