TPT-81AX Test Panel


Replacement Panel for both Honeywell TPT-81A and TPT Expansion Box for Testing of
TPA-100A/B/C, TPA-81A, TPU-66A, TPU-67A/B, and KTA-810/910

Mobirise

Hardware Compatability and Enhancements

User Interface Software Executes Honeywell TPA-100 Test Sequences and ATE Unit Software.
TPT-81AEX works with Existing Peripheral Equipment (RGS2000, RGS2000NG, Oscilloscopes, and Power Supplies).
One Hundred and Seventy Six (176) Open/Common Discrete Outs (Individual Common Strap Every 4 Discrete Outs).
Sixteen (16) +12V/Open Discrete Out.
Sixty Four (64) Avionics Discrete Inputs.
Twenty Four (24) 429 Receivers.
Fourty Two (42) 429 Transmitters.
Two (2) RS-232 I/O.
Four (4) Synchro Outputs.
Two (2) GPS PPS Outputs.
Analog Altimeter Output.
Virginia Panel Connector to Interface with Cooling Tray Assembly.

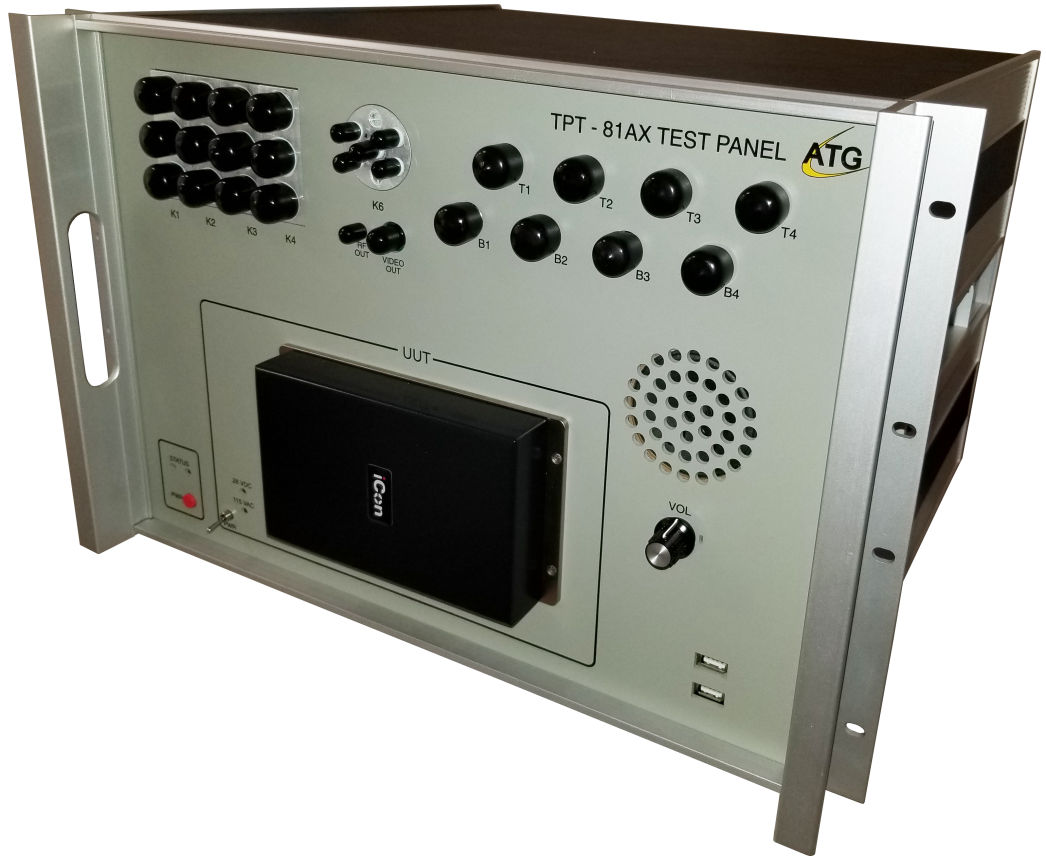

Front Speaker with Volume Control.
Analog to Digital Converters (Headphone, Speaker, Test Panel Voltages).

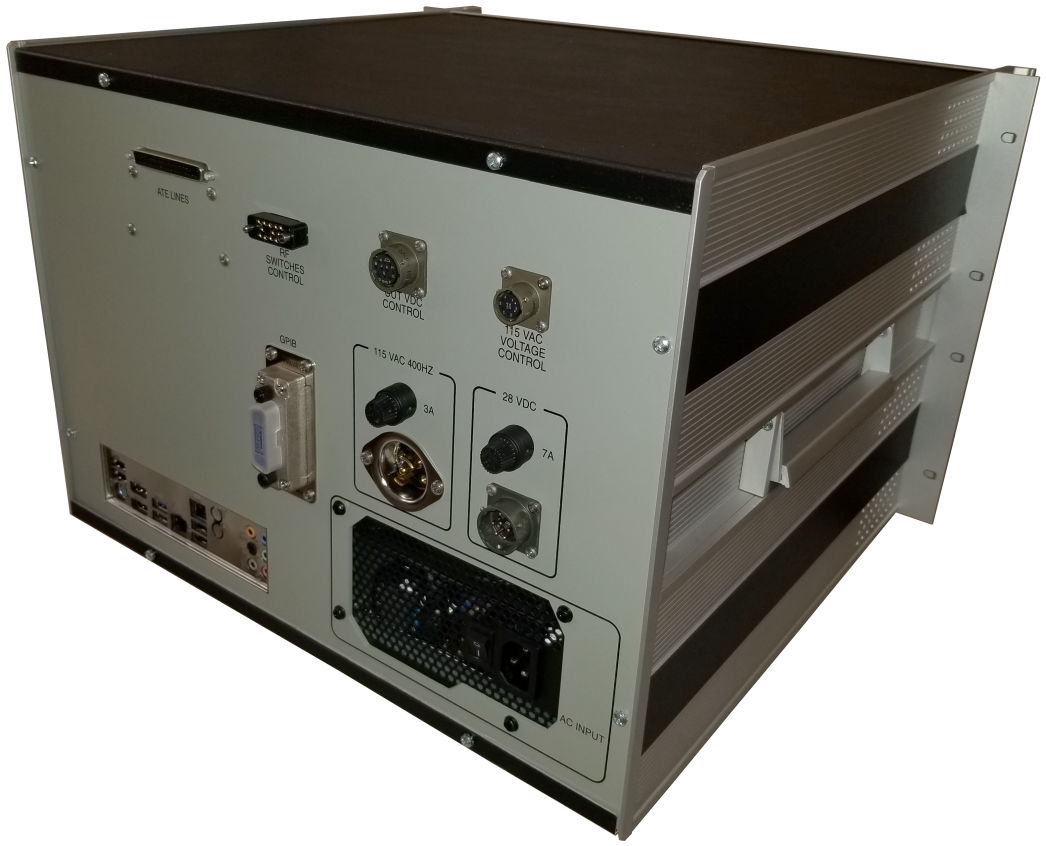

ATE Line Connector (Rear Panel).
UUT AC/DC Fused Input Connector (Rear Panel).
Coaxial N Type RF Switches (Expansion Box) with Internal and External (Rear) Control.
Coaxial SMA Type RF Switch (Expansion Box - Spectrum Analyzer).
28 VDC Control Connector (Rear).
115 VAC Voltage Control Connector (Rear).


Mobirise

User Interface Enhancements

Can be Executed from Internal or External PC.
Compatible with Windows 10, 7, and XP.
Windows Service (Internal PC) Provides Interface between User Interface and Hardware I/O.
Test Panel Controlled via Standard Ethernet Interface.
Embedded GPIB Controller for Internal Test Execution.
User Interface Allows GPIB Control of AC Power Supply Voltage.
TELI Interpreter (Future) to Allow Testing of TPA-81A, TRA-67A, Control Heads, and Displays.
TPU-67A/B Test Capability
KTA-810/910 Test Capability
VNC for Internal Operation and Testing without Attached Monitor.

New Features

Embedded Antenna Simulator (Honeywell, Collins, and ACSS) to allow Unit Troubleshooting without RF Generator (RGS2000 or RGS2000NG).
Front Log Detector Output and Coupled Output (50 dB Attenuation) of Selected Antenna Port.
Two (2) USB 2.0 I/O (Front), Four (4) USB 3.0 I/O (Rear), and Two (2) USB 2.0 I/O (Rear) for HID and Flash Drives.
Two (2) Ethernet Ports (Rear).
HDMI Output for Test Software Monitoring.

Cooling Tray

TPA-100/TPA-81A:
Cooling Tray with Six (6) Feet Wiring Harness.
115 VAC 400 Hz Cooling Fan.
Eight (8) N Type RF Bulkhead Connector (Rear) for Antenna Port.
Eight (8) N-N RF Coaxial Cables for Cooling Tray to RF Test Set Connection.
Log Video BNC Bulkhead Connector (Rear).
TPA-100 Ethernet Output Port (Rear).
TPA-81A Dataloader Connector (Rear).
TPA-81A Dataloader Cable for Cooling Tray to TPA-81A Front Connector.

TPU-66/67:
28 VDC Cooling Fan.
Eight (8) N Type RF Bulkhead Connector (Rear) for Antenna Port.
Eight (8) N-N RF Coaxial Cables for Cooling Tray to RF Test Set Connection.
Configuration Module Mounting.
RS-232 Port (Rear) for Test Software and Diagnostics.

KTA-810/910:
Six (6) Feet wiring Harness.
Eight (8) RF Coaxial Cables for UUT to RF Test Set Connection.
Configuration Module Mounting.
RS-232 Port for Test Software and Diagnostics.
