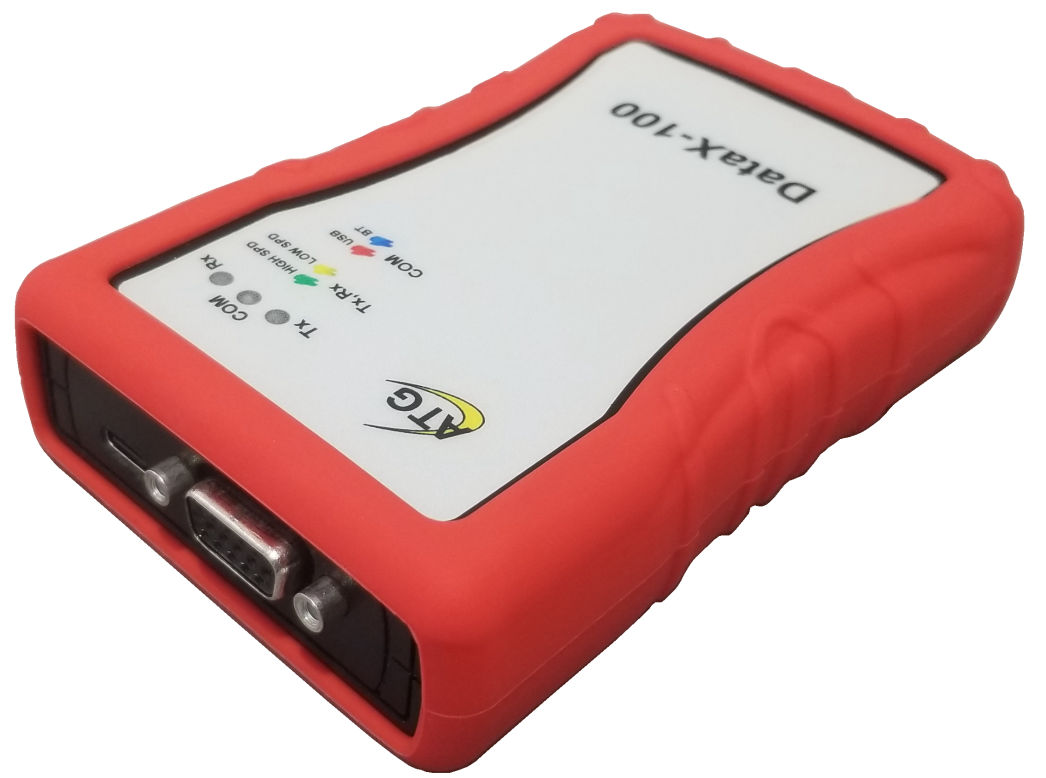

DATAX-100 ARINC 429


Conditioner/Analyzer

Mobirise

2 Receivers/1 Transmitter

Transmitter:

Adjustments:

Voltage (Hi, Null, and Lo), Frequency, Duty Cycle, Speed, and Rise/Fall Times.Self detection of ARINC 429 speed.

Modes of Operations:
Slave - Labels on Receiver #1 are retransmitted with/without level adjustment.
Master: User defined labels are transmitted with level adjustment.


Receivers:

Self detection of ARINC 429 speed.
Scope mode for Receiver #1 provides measurements of voltage (Hi, Lo, and Null level), rise/fall times, and frequency.
Selectable load (8K or 400 ohms) in Receiver#1.



Adjustment Specification:
Hi Voltage: 4 to 13 V +/- 0.1 V
Lo Voltage: -4 to -13 V +/- 0.1 V
Null Voltage: -3 to 3 V +/- 0.1 V
Duty Cycle: 40 to 60 % +/- 1 %
Rise/Fall High Speed: 0.75 to 2.25 us +/- 0.05 us
Rise/Fall Low Speed: 2.5 to 17.5 us +/- 0.05 us
Frequency High Speed: 98 to 102 KHz +/- 0.5 KHz
Frequency Low Speed: 11.5 to 15 KHz +/- 0.5 KHz

USB-C Powered (PC or USB-C Power Pack)

Programming/Control:

USB-C or Bluetooth LE

User Interface:
Windows
